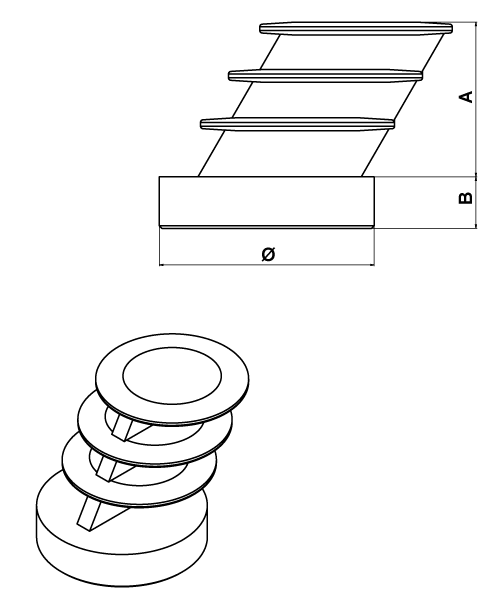

604 – Ribbed insert 30° inclined in PE

For all internal finned tips, the head size refers to the external dimension of the tube.

Colour	Black
Unit of measurement	Millimeters

wdt_ID	Codice	Ø testa / head	A	B
1	604001INPIT2	16	15	5
2	604002INPIT2	18	15	5
3	604003INPIT2	22	18	6
4	604004INPIT2	25	18	6
5	604005INPIT2	28	18	6
6	604006NNPIT2	30	18	6
7	604007INPIT2	60	40	6
	Codice	Ø testa / head	A	B
