602 – Square ribbed insert in PE

For all internal finned tips, the head size refers to the external dimension of the tube.

Colour	Black, White
Unit of measurement	Millimeters

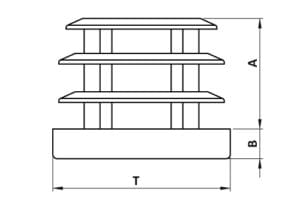

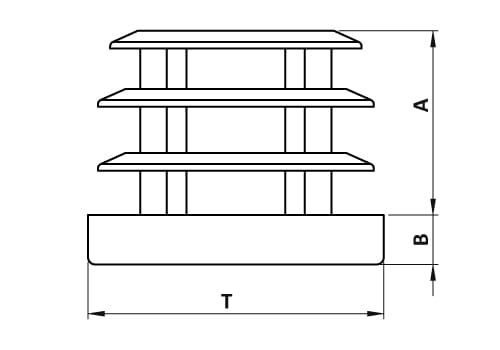

wdt_ID	Codice	T Testa/Head	A	B
1	602001INPQA2	12x12	12	5
2	602002INPQA2	15x15	11	4
3	602003INPQA2	16x16	17	5
4	602004INPQA2	18x18	12	5
5	602005CPNPQA2	20x20	17	5
6	602006INPQA2	22x22	17	5
7	602007INPQA2	25x25	20	6
8	602008NNPQA2	30x30	21	6
9	602009INPQA2	35x35	21	6
10	602010NNPQA2	40x40	21	6
11	602011INPQA2	50x50	21	6
12	602012INPQA2	60x60	22	6
13	602013INPQA2	70x70	25	6
14	602016INPQA2	80x80	30	6
15	602017INPQA2	100x100	30	6
	Codice	T Testa/Head	A	B
