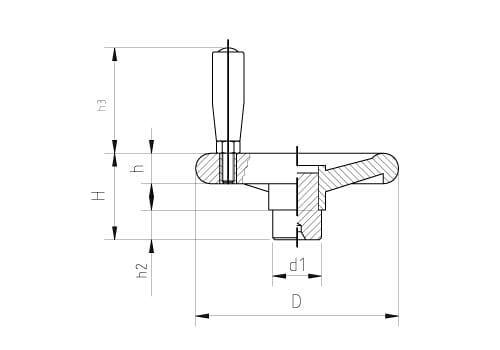

517 – Handwheel, 4-spokes with visible hub and revolving handle

Hub execution with bore or thread on request

Folding snap handle on request

Colour	Black
Unit of measurement	Millimeters

wdt_ID	Codice	Ø D	d1	H	h	h2	h3
1	517001LNVRM18	100	24	48	15	20	51
2	517002LNVRM18	120	25	49	16	15	82
3	517003LNVRM18	140	28	55	20	18	82
4	517004LNVRM18	160	32	57	22	21	82
5	517005LNVRM18	200	40	73	25	25	107
6	517006LNVRM18	250	50	85	29	32	107
7	517007LNVRM18	300	52	95	35	30	107
	Codice	Ø D	d1	H	h	h2	h3
